I recently received my Compute Blade kickstarter backer rewards, enough for a 4 node cluster. This document is to outline what I needed to do in order to have them PXE boot.

netboot.xyz

To start with I have deployed an instance of netboot.xyz to my network, in my case it’s running on a Raspberry Pi 3b that I already have on my network.

It was a pretty simple job to get an instance running as it already has container images that can be run with your chosen runtime, in this case docker. I use the following script to run it, this is fairly simple and can be used to update the image by running the script again:

#!/usr/bin/env bash

docker stop netbootxyz
docker rm netbootxyz
docker run -d \
  --name=netbootxyz \
  -p 3000:3000 \           # sets webapp port
  -p 69:69/udp \           # sets tftp port
  -p 8082:80 \             # optional, exposes the contents of /assets
  -v /mnt/config:/config \ # optional
  -v /mnt/assets:/assets \ # optional
  --restart unless-stopped \
  ghcr.io/netbootxyz/netbootxyz:latest # set a specific version here if you don't want to update when rerunning the script

That’s your PXE server setup, next we need to tell devices on the network about this server.

dnsmasq dhcp configuration

In order to boot the Compute Blade with the CM4 module we need to set some dnsmasq dhcp options in our DHCP server. I’m making use of the DHCP Server built into the Ubiquity EdgeRouter 12P, these should work generally though I have seen a lot of confusing information around the web on this.

The following settings are what I have that enables my Compute Blades to PXE boot, change the ${SERVER_DOMAIN} and ${SERVER_IP} to match where you have deployed netboot.xyz:

  • pxe-service=0,Raspberry Pi Boot
  • dhcp-match=set:arm64,option:client-arch,b
  • dhcp-boot=tag:arm64,netboot.xyz-arm64.efi,${SERVER_DOMAIN},${SERVER_IP}
  • dhcp-match=set:amd32,option:client-arch,2
  • dhcp-match=set:amd32,option:client-arch,6
  • dhcp-boot=tag:amd32,netboot.xyz.efi,${SERVER_DOMAIN},${SERVER_IP}
  • dhcp-match=set:amd64,option:client-arch,7
  • dhcp-match=set:amd64,option:client-arch,8
  • dhcp-match=set:amd64,option:client-arch,9
  • dhcp-boot=tag:amd64,netboot.xyz.efi,${SERVER_DOMAIN},${SERVER_IP}

I believe ${SERVER_DOMAIN} is not required, in which case you should keep the , so it would look something like this: dhcp-boot=tag:arm64,netboot.xyz-arm64.efi,,${SERVER_IP}

Through messing around with these I have found that the CM4 requires that pxe-service is set as above or it will not work at all. Then we need to dhcp-match the correct architecture for the CM4 which is option:client-arch,b, the set:arm64 is setting up a tag that is referenced in the dhcp-boot config. I have listed the other boot and match examples just to show how you can setup x86 and x86_64 architectures.

Booting the Compute Blade

At this point if you boot the Compute Blade you should see that it tries to hit the PXE server as configured but will be looking for and not finding start.elf and fixup.dat or start4.elf and fixup4.dat, so we need to provide these files. Here is an example of what this failing might look like:

  board: rev ...
   boot: mode NETWORK 2 order ... retry 0/0 restart 26/-1
     SD: card not detected
   part: 0 mbr ...
     fw: start.elf fixup.dat
    net: up ip: 192.168.0.20 sn: 255.255.255.0 gw: 0.0.0.0
   tftp: 192.168.0.10 XX:XX:XX:XX:XX:XX
display: DISP0: HDMI HPD=1 EDID=ok #2 DISP1: HPD=0 EDID=none #0

ARP 192.168.0.10 XX:XX:XX:XX:XX:XX
NET 192.168.0.20 255.255.255.0 gw 0.0.0.0 tftp 192.168.0.10
TFTP 1: File not found
TFTP 1: File not found
TFTP 1: File not found
TFTP 1: File not found
TFTP 1: File not found
TFTP 1: File not found
TFTP 1: File not found
DHCP src: XX:XX:XX:XX:XX:XX 192.168.0.1
YI_ADDR 192.168.0.20
SI_ADDR 192.168.0.1
TFTP 1: File not found
Firmware not found

You can get a copy of these files from the official firmware or Uptime Industries provide a custom build, which I have used.

Once you have downloaded the firmware you should add the files to the config directory of the netboot.xyz instance. There are two ways that you can do this:

  • directly into /mnt/config/menus, this will mean any raspberry pi system will pick up these files
  • into a sub directory, /mnt/config/menus/abc123, where abc123 is the serial number of the device you want to grab these specific files

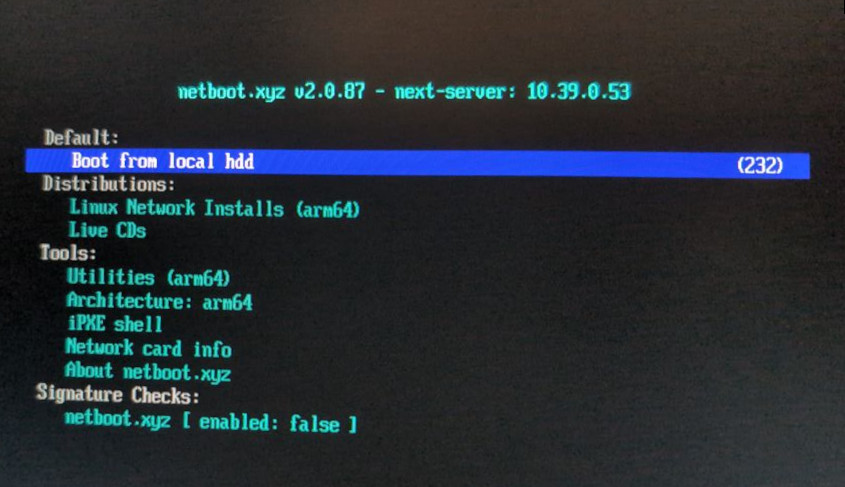

Now that you have these in place when you boot the Compute Blade it will grab these files, then grab the configured efi file in dhcp-boot. You will eventually see something like the following on the Compute Blade:

Netboot.xyz Menu

There we go, now successfully booted and able to install your chosen OS. If you have changes you would like to make to the boot config, that can be done in the config.txt file downloaded in the firmware, see the docs here.
